Foldables & Large Screens

NX Redux fits itself to the screen it's on. On a foldable the pad skin is split where the hinge is, a wide or large screen gets a fuller Home, and Settings and the in-game menu split into two panes when there is room. For handhelds with a second screen, and displays on USB-C, see Dual Screens & External Displays.

Half-folded

Fold a foldable partway, like a small laptop, with the hinge running across the screen. With a pad skin the app splits at the hinge:

  • Above the hinge: the skin's screen, with the game.
  • Below the hinge: the skin's buttons.

There is no setting. The skin follows the fold when you fold the phone and when you open it flat, and a game you start while half-folded starts on the hinge. Nintendo DS and 3DS games put their touch screen below the hinge: see below.

  • A foldable's inner screen, and tablets, held upright: the skin is already split at the middle when the screen is flat, so folding or opening it mid-game doesn't change the layout.
  • The main menu on those screens: the menu is on two screens. The menu itself is below the hinge with the buttons, and the frame above the hinge shows the highlighted game's details, as the top screen of a dual-screen handheld does.

The main menu on a half-folded Galaxy Z Fold: Mario Kart DS's details above the hinge, Grid Home and the skin's buttons below it - A narrower foldable, such as a Galaxy Z Flip: flat, it uses the phone's layouts. Half-folded, a game's screen moves above the hinge and the buttons below it; the main menu fills the screen with no skin. - With a controller connected: there is no skin, and the game or the menu uses the whole screen as it does flat. - With Pad skin Off: the game stays full screen, and its see-through buttons sit below the hinge.

More detail
  • The hinge must run across the screen, and each half must be at least a quarter of the screen. A book-style fold, with the hinge from top to bottom, keeps the usual layout.
  • On a phone that doesn't report its half-folded state, such as the Galaxy Z Fold, the app reads the hinge angle: between 30° and 150° counts as folded.
  • On a pad skin's screen, Settings, RetroAchievements, the Game Tracker and Artwork decide between one page and two panes from the skin's screen, not the whole window. Grids and Home lay out for it too.
  • When a game resumes from a save state, the save's picture shows on the skin's screen until the game's own picture replaces it. On the Nintendo DS and 3DS it shows on the top screen.

Nintendo DS and 3DS half-folded

Half-fold the inner screen of a foldable such as the Galaxy Z Fold, and a DS or 3DS game with a pad skin is held like the real handheld:

  • Above the hinge: the top screen.
  • Below the hinge: the touch screen, with the skin's buttons round it.

The touch screen takes touches, and SWAP trades the two screens across the hinge. Fold or open the phone mid-game and the layout follows. On the inner screen it looks the same half-folded as flat, except that the Panel pill (see below) shows only when the phone is flat.

Mario Kart DS on a half-folded Galaxy Z Fold: the top screen above the hinge, the touch screen and the skin's buttons below it

More detail
  • The skin places the two screens here, so the game's Layout rows don't apply. On a phone that can half-fold, they say they set the layout used when the phone isn't half-folded.
  • With a controller connected, or with Pad skin Off, there is no skin: the game keeps its own layout, folded or flat.
  • Move or resize these buttons with Button layout. The band round the hinge stays clear.
  • With a second screen the game keeps the split across the two screens instead.

Two screens in one skin

On a foldable's inner screen and on tablets held upright, and on a half-folded Galaxy Z Flip with a Nintendo DS or 3DS game, the skin works like a dual-screen handheld with no second display:

  • The top screen shows the game, or the DS or 3DS top screen.
  • The bottom screen shows the DS or 3DS touch screen. On the Fold's inner screen and on tablets, a one-screen game shows its game panel there instead, beside the buttons.

The in-game menu opens in the bottom screen, the menu alone with no tab row. The top screen keeps the paused game, dimmed under a pause mark.

A GBA game on the unfolded Galaxy Z Fold with the in-game menu open: the paused game dimmed on top, the menu with a one-line header in the bottom screen

Mario Kart DS on the unfolded Galaxy Z Fold: the race on top, the game panel's Shortcuts tab over the touch screen, the Game pill at the bottom right

On the Nintendo DS and 3DS a Panel pill sits at the bottom right of the window while the phone is flat. Tap it and the game panel covers the touch screen; the Game pill in the same spot brings the touch screen back. Fast forward, rewind or the mic started from the panel bring it back too.

More detail
  • The skin's row of touch shortcuts hides while the game panel sits in the skin: the panel's own shortcuts stand in for it.
  • A panel or menu less than 320 dp tall shows a one-line header: the game's name, the clock and the battery.
  • With a controller connected, or with Pad skin Off, there is no skin, and the menu opens over the game as usual.

Home on wide and large screens

Home lays itself out for the screen's shape. In portrait and on most screens it looks as in Main Menu. In landscape the first one or two pinned games sit beside the Continue card, and your pinned tools are a row of tiles under them.

More detail

Portrait: the pinned tools are up to two rows of tiles under the Continue card. With more, the last tile is +N, which opens Tools.

Landscape: Continue and the first one or two pinned games fill the first screen. One row of tool tiles comes under them, a scroll away, then the rest of the pinned games. A narrow landscape phone keeps the row of tools on the first screen and has no games beside Continue.

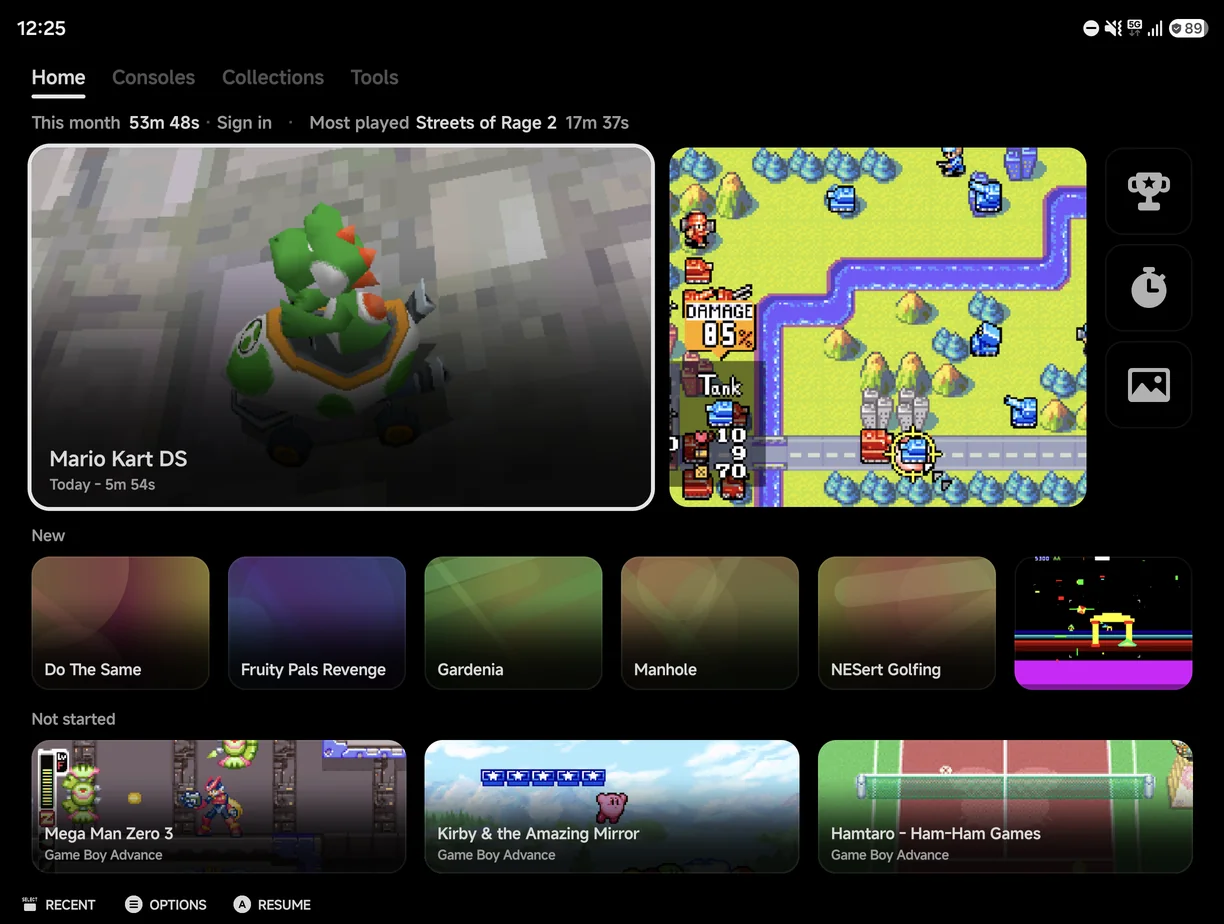

Large face: a landscape screen at least 840 × 480 dp, such as an unfolded Galaxy Z Fold or a tablet.

  • The other pinned games fill the rows below, four to a row.
  • Under them come the shelves, up to four games each in one row, at the pinned games' size.

The pinned tools use the Tools tab's tile on every screen: an icon over a two-line name.

Shelves

Home shows up to four shelves of games from your library, to help you pick something to play. They show on every screen size and in every Home layout.

Shelf What it holds
Most played The games you've played longest, most first, each with its play time. Right under your pinned games.
New Games the app first found in the last 30 days, newest first.
Not started Games you have never played. Picked again each day.
Pick up again Games you last played more than 14 days ago, most played first.

Layouts can hide the Most played, New and Not started shelves, each with its own row in Layouts → Home. Pick up again always shows when it has games.

More detail
  • Shelves show in portrait and landscape alike. Each shelf shows only when it has games, and a game is never on two shelves, the shelves filling in the order of the table. A shelf holds at most 4 games; Grid Home in landscape shows as many whole rows as fit within that.
  • Each shelf has its name as a label above it; on Carousel and List Home each game wears it as a badge or tag instead. A Most played game's badge is its play time.
  • The game on the Continue card, your pinned games, Unassigned games and Android games are left off the shelves.
  • A hidden shelf takes no games, so the shelves after it can show them.

Two-pane screens

On a wide screen, such as most phones in landscape or an unfolded Fold held sideways, some pages show two panes side by side. Portrait screens keep one page at a time.

With a controller or the on-screen pad, two panes change what Left and Right do:

  • Left / Right move between the panes. They never change a value.
  • To change a row with choices, swatches or a stepped value, press A on it. The row gets a ring and < > round its value, and the hints read Change and Done. Left / Right now step it; A or B finishes, and Up / Down finishes and moves on.
  • A on a switch flips it, and A on a long list opens its list to pick from, as on one page.
  • The row that opened the right pane is grey in the left pane, with a › after it.

Settings → Appearance on the Fold's cover screen held sideways, Pad skin off: the Text size row ringed, with < and > round Large and Small

On one page, Left / Right change a value straight away. Touch changes values directly everywhere.

More detail
  • A window counts as wide when it is at least 600 dp wide and at least 1.3 times as wide as it is tall.
  • Inside a pad skin the skin's screen is what counts, not the window. A landscape skin's screen is close to square, so it shows one page at a time.
  • Holding Left goes up one level, and holding Right opens one page.

Settings

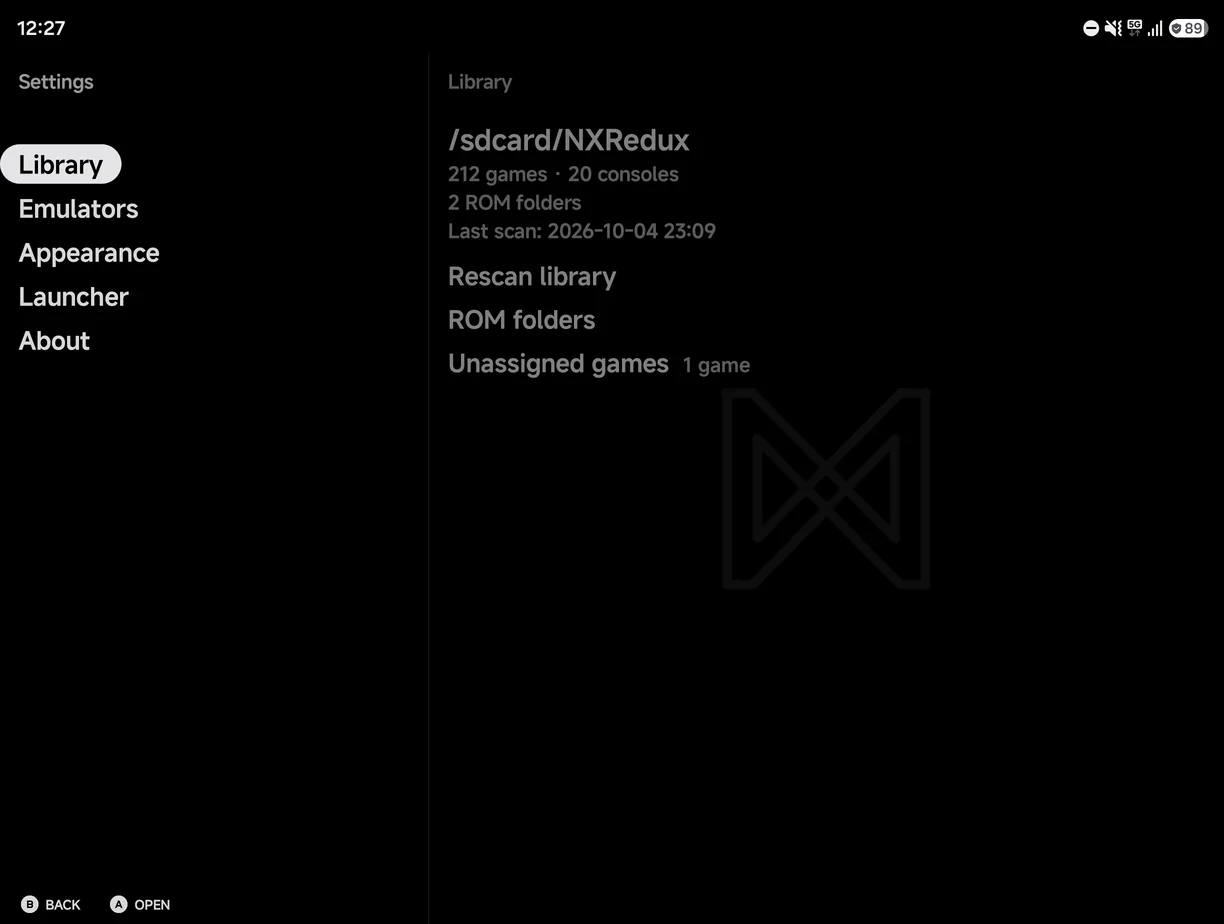

Tools → Settings shows its sections on the left and the selected section's page on the right. Moving through the sections previews each page.

RetroAchievements

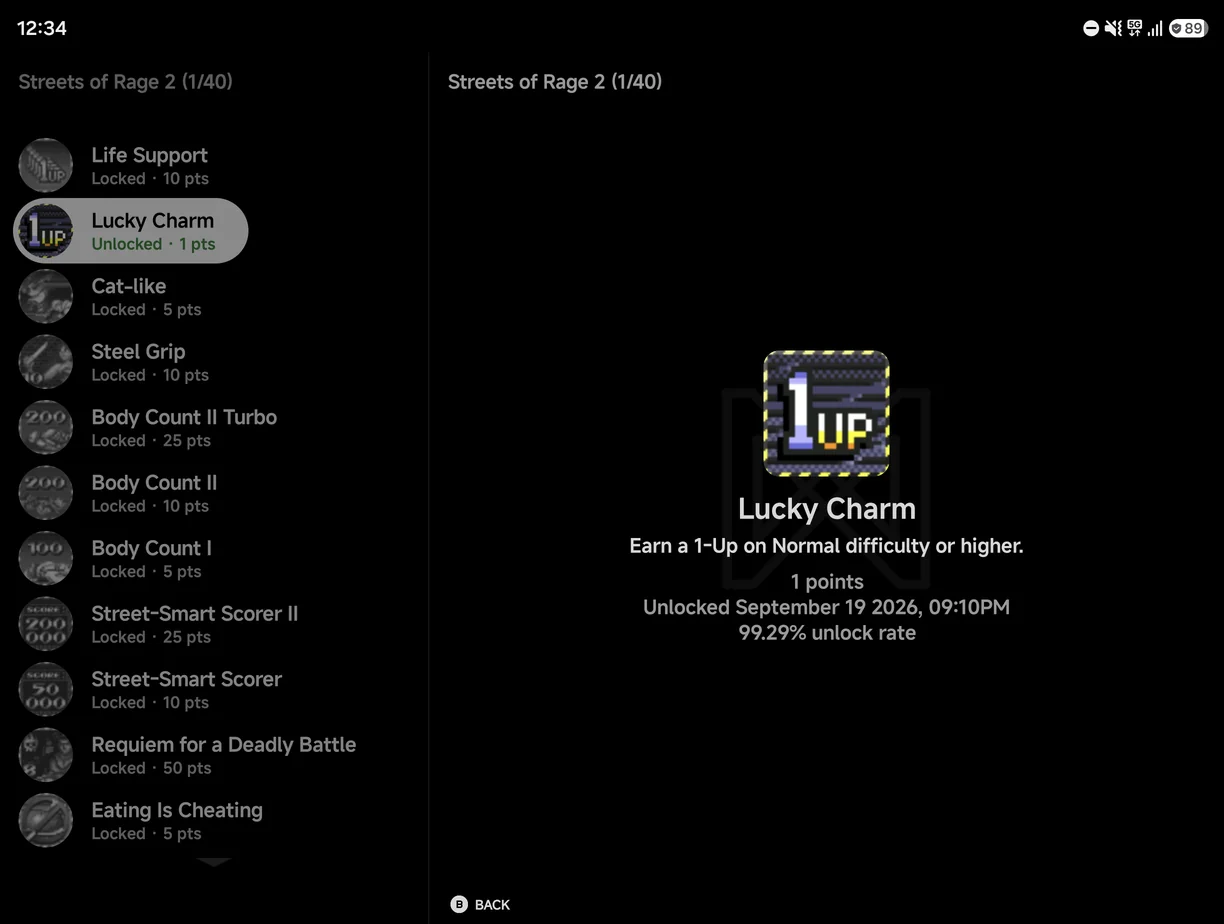

Below the RetroAchievements page, each level opens beside the one it came from, such as an achievement's details beside the game's achievements list. The page you came from stays on the left, dimmed. The Game Tracker shows a game's sessions the same way.

More detail

The dimmed page keeps the row that opened the right pane highlighted. A game's achievements open beside the games list.

Artwork

Artwork works the same way: its pages open beside the Artwork page. Tap a row in the dimmed left pane to open it instead.

More detail

Fetch by console, Progress and Settings open beside the Artwork page, and Reset artwork beside Settings. The page you came from keeps its row lit.

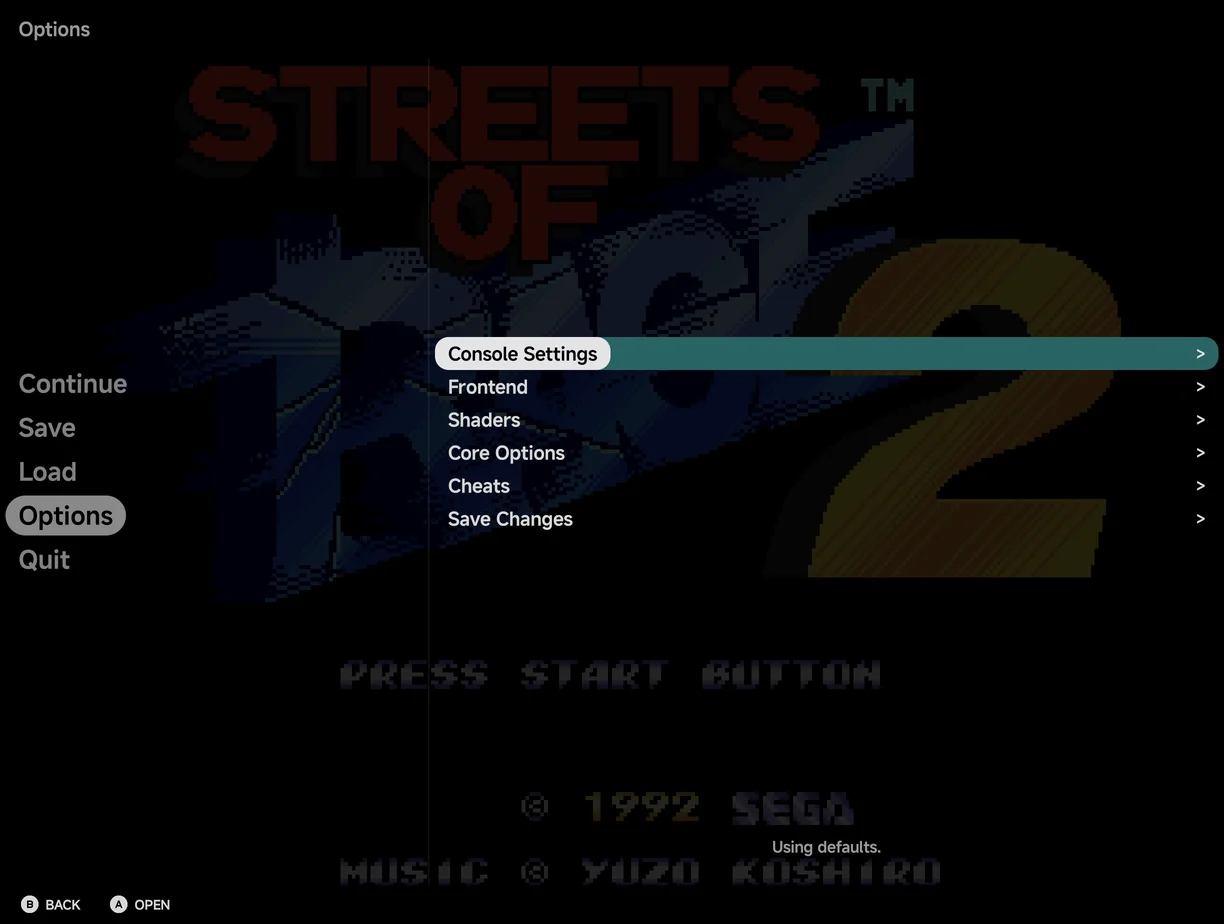

In-game menu

The in-game menu splits too, on its Menu tab. The Achievements, Cheats and Players tabs use the whole width.

  • On the first page, the right pane shows the save slot on Save and Load and a preview of the page on Options. It is empty on the other rows.
  • Deeper in, the open page is on the right and the page it came from on the left, dimmed.
  • RIGHT on a row that opens a page opens it, as A does, and LEFT goes back. To change a value, press A on its row first.
  • Tap a row in the dimmed pane to go back to it.
